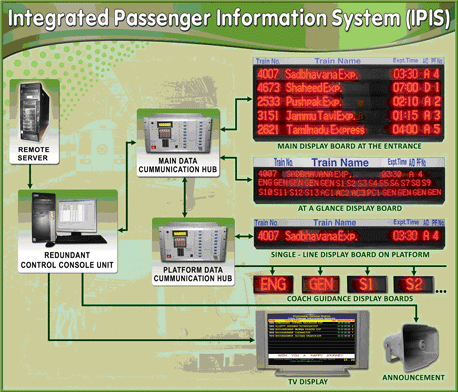

Includes:

• Redundant control console system loaded with Application software
• LED Display boards of different sizes and serial communication HUB’s
• CCTV
• PC based Announcement system

Features of control console unit

• Dissemination of data with single button click
• Provision to update data from remote server which is maintaining actual train arrival/departure timings and predictions
• Reports for disseminated data for future analysis
• Voice play back and voice recording facility
• UNICODE standard for data entry of all the languages
• Intensity control of display boards with user time settings from application software
• Overall system communication health status indication in application software

Features of display boards

• Multi Lingual Display
• LEDs with more viewing angle and life time
• Dust proof, weather proof, and water proof systems as per protection class IP 54
• Can be realized in different dimensions, character heights and brightness that are customized in accordance to the place of installation, in order for optimal readability.

	Coach Guidance	Single Line	Multi Line	3 Line At a Glance
Case Dimension (LxDxH)	510x136x230mm	3420x130x225mm	3440x125x1200mm	2450x120x361mm
Display Matrix	16X48	16X336	16X336	8X240
Number of Sides	Double Sided	Double Sided	Single Sided	Single Sided
Number of Lines	Single Line	Single Line	5 Line / As required	3 Line
LED type	Diffused	Diffused	Diffused	Diffused
Pixel Size	5mm Oval	5mm Oval	5mm Oval	5mm Oval
Pixel Color	RED/GREEN	RED/GREEN	RED/GREEN	RED/GREEN
Center to Center pixel spacing	10mm	10mm	10mm	10mm
Character Size	160mm	160mm	160mm	80mm
LED brightness	500 mcd/1400 mcd	500 mcd/1400 mcd	500 mcd/1400 mcd	500 mcd/1400 mcd
Viewing Angle	Horizontal: 110o Vertical: 40o	Horizontal: 110o Vertical: 40o	Horizontal: 110o Vertical: 40o	Horizontal: 110o Vertical: 40o
Viewing Distance	Up to 50 mts	Up to 50 mts	Up to 50 mts	Up to 50 mts
Interface	Optically isolated current loop communication	Optically isolated current loop communication	Optically isolated current loop communication	Optically isolated current loop communication
Case Material	Powder coated galvanized iron	Powder coated galvanized iron	Powder coated galvanized iron	Powder coated galvanized iron
Mounting	Wall mounting / Ceiling suspension	Wall mounting / Ceiling suspension	Wall mounting / Ceiling suspension	Wall mounting / Ceiling suspension
Power Supply	110V/230V AC	110V/230V AC	110V/230V AC	110V/230V AC
Power consumption	58W	400W	1KW (5-Line)	215W
Operating Temperature	-10o to +70oC	-10o to +70oC	-10o to +70oC	-10o to +70oC

Serial HUBs

• Routing of data to respective destinations
• Communication health indications on front panel of serial HUBs.
• Diagnostic routines to indicate faulty ports in serial HUBs
• Can be configurable to work either as Main HUB or Platform HUB

Other features

• CCTV displays train information in different languages.
• PC based Voice announcement system in different languages which incorporates following functions:
  • Automatic Train Arrival and Departure announcement to passengers
  • Special announcements
